ISL9V3040S3S, ISL9V3040D3S, N-Channel Ignition IGBT

ECOSPARK) Ignition IGBT 300 mJ, 400 V, N *Channel Ignition IGBT ISL9V3040D3S, ISL9V3040S3S, ISL9V3040P3 General .
The ISL9V3040D3S, ISL9V3040S3S, and ISL9V3040P3 are the next generation ignition IGBTs that offer outstanding SCIS capability in the space saving D.

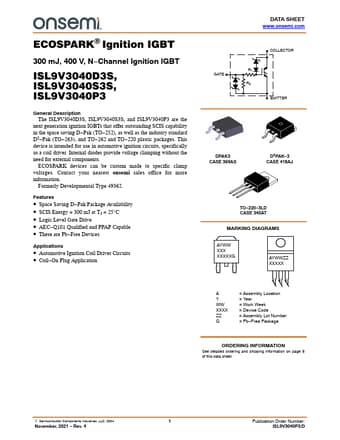

datasheet Preview Page 1 from Datasheet4u.com

ISL9V3040D3S-ONSemiconductor.pdf

ISL9V3040S3S Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL9V3040S3S, ISL9V3040D3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISL9V3040S3S, ISL9V3040D3S

Manufacturer:

ON Semiconductor ↗

File Size:

3.92 MB

Description:

N-Channel Ignition IGBT

Note:

This datasheet PDF includes multiple part numbers: ISL9V3040S3S, ISL9V3040D3S.
Please refer to the document for exact specifications by model.

Features

* Space Saving D
* Pak Package Availability
* SCIS Energy = 300 mJ at TJ = 25°C
* Logic Level Gate Drive
* AEC
* Q101 Qualified and PPAP Capable
* These are Pb

Applications

* Automotive Ignition Coil Driver Circuits
* Coil
* On Plug Application GATE DATA SHEET www. onsemi. com COLLECTOR R1 R2 EMITTER DPAK3 CASE 369AS D2PAK
* 3 CASE 418AJ TO
* 220
* 3LD CASE 340AT MARKING DIAGRAMS AYWW XXX XXXXXG AYWWZZ XXXXX A Y WW XXXX ZZ
