MC10EP11

1:2 Differential Fanout Buffer

MC10EP11 Features

* 220 ps Typical Propagation Delay

* Maximum Clock Frequency > 3 GHz Typical

* PECL Mode Operating Range:

* VCC = 3.0 V to 5.5 V with VEE = 0 V

* NECL Mode Operating Range:

* VCC = 0 V with VEE =

* 3.0 V to

* 5.5 V

* Open Input De

MC10EP11 General Description

The MC10/100EP11 is a differential 1:2 fanout buffer. The device is pin and functionally equivalent to the LVEL11 device. With AC performance much faster than the LVEL11 device, the EP11 is ideal for applications requiring the fastest AC performance available. The 100 Series contains temperature com.

MC10EP11 Datasheet (176.16 KB)

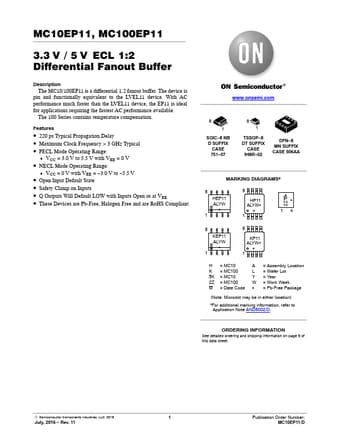

Preview of MC10EP11 PDF

Datasheet Details

Part number:

MC10EP11

Manufacturer:

ON Semiconductor ↗

File Size:

176.16 KB

Description:

1:2 differential fanout buffer.
