MC10E101 - Quad 4-Input OR/NOR Gate

This page provides the datasheet information for the MC10E101, a member of the MC100E101 Quad 4-Input OR/NOR Gate family.

📥 Download Datasheet

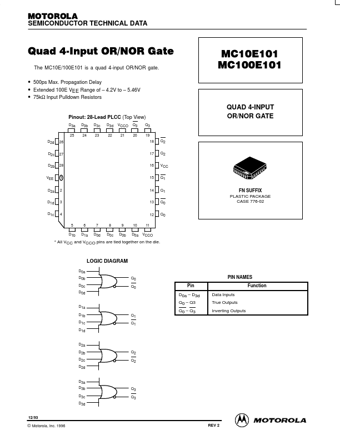

Datasheet preview – MC10E101

Datasheet Details

Part number MC10E101
Manufacturer Motorola
File Size 98.36 KB
Description Quad 4-Input OR/NOR Gate
Datasheet download datasheet MC10E101 Datasheet
Additional preview pages of the MC10E101 datasheet.

📁 Similar Datasheet

  • MC10E101 - QUAD 4-INPUT OR/NOR GATE (ON Semiconductor)
  • MC10E104 - QUINT 2-INPUT AND/NAND GATE (ON Semiconductor)
  • MC10E107 - QUINT 2-INPUT XOR/XNOR GATE (ON Semiconductor)
  • MC10E111 - 1:9 DIFFERENTIAL CLOCK DRIVER (ON Semiconductor)
  • MC10E112 - QUAD DRIVER (ON Semiconductor)
  • MC10E116 - 5V ECL Quint Differential Line Receiver (ON Semiconductor)
  • MC10E122 - 9-BIT BUFFER (ON Semiconductor)
  • MC10E131 - 4-BIT D FLIP-FLOP (ON Semiconductor)
  • MC10E136 - 6-BIT UNIVERSAL UP/DOWN COUNTER (ON Semiconductor)
  • MC10E137 - 5V?ECL 8?Bit Ripple Counter (ON Semiconductor)
Other Datasheets by Motorola

Full PDF Text Transcription

Click to expand full text
MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 4ĆInput OR/NOR Gate The MC10E/100E101 is a quad 4-input OR/NOR gate. • 500ps Max. Propagation Delay • Extended 100E VEE Range of – 4.2V to – 5.46V • 75kΩ Input Pulldown Resistors Pinout: 28-Lead PLCC (Top View) D3a D3b D3c D3d VCCO Q3 Q3 25 24 23 22 21 20 19 D2d 26 18 Q2 D2c 27 17 Q2 D2b 28 16 VCC VEE 1 15 Q1 D2a 2 14 Q1 D1d 3 13 Q0 D1c 4 12 Q0 5 6 7 8 9 10 11 D1b D1a D0d D0c D0b D0a VCCO * All VCC and VCCO pins are tied together on the die. MC10E101 MC100E101 QUAD 4-INPUT OR/NOR GATE FN SUFFIX PLASTIC PACKAGE CASE 776-02 12/93 © Motorola, Inc.
