MC10E122 Datasheet - Motorola

MC10E122 9-BIT BUFFER

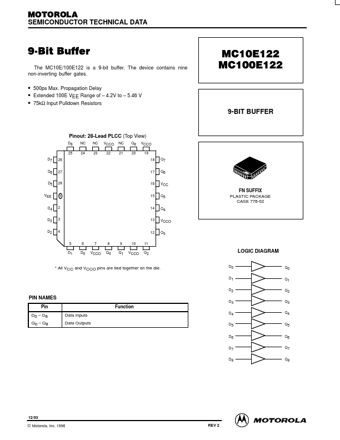

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 9ĆBit Buffer The MC10E/100E122 is a 9-bit buffer. The device contains nine non-inverting buffer gates. 500ps Max. Propagation Delay Extended 100E VEE Range of 4.2V to 5.46 V 75kΩ Input Pulldown Resistors Pinout: 28-Lead PLCC (Top View) D8 NC NC VCCO NC Q8 VCCO 25 24 23 22 21 20 19 D7 26 18 Q7 D6 27 17 Q6 D5 28 16 VCC VEE 1 15 Q5 D4 2 D3 3 D2 4 14 Q4 13 VCCO 12 Q3 5 6 7 8 9 10 11 D1 D0 VCCO Q0 Q1 .

MC10E122-Motorola.pdf

Preview of MC10E122 PDF
MC10E122 Datasheet Preview Page 2 MC10E122 Datasheet Preview Page 3

Datasheet Details

Part number:

MC10E122

Manufacturer:

Motorola

File Size:

94.04 KB

Description:

9-bit buffer.
