MC10E107 - QUINT 2-INPUT XOR/XNOR GATE

This page provides the datasheet information for the MC10E107, a member of the MC100E107 QUINT 2-INPUT XOR/XNOR GATE family.

📥 Download Datasheet

Datasheet preview – MC10E107

Datasheet Details

Part number MC10E107
Manufacturer Motorola
File Size 102.44 KB
Description QUINT 2-INPUT XOR/XNOR GATE
Datasheet download datasheet MC10E107 Datasheet
Additional preview pages of the MC10E107 datasheet.

📁 Similar Datasheet

  • MC10E107 - QUINT 2-INPUT XOR/XNOR GATE (ON Semiconductor)
  • MC10E101 - QUAD 4-INPUT OR/NOR GATE (ON Semiconductor)
  • MC10E104 - QUINT 2-INPUT AND/NAND GATE (ON Semiconductor)
  • MC10E111 - 1:9 DIFFERENTIAL CLOCK DRIVER (ON Semiconductor)
  • MC10E112 - QUAD DRIVER (ON Semiconductor)
  • MC10E116 - 5V ECL Quint Differential Line Receiver (ON Semiconductor)
  • MC10E122 - 9-BIT BUFFER (ON Semiconductor)
  • MC10E131 - 4-BIT D FLIP-FLOP (ON Semiconductor)
  • MC10E136 - 6-BIT UNIVERSAL UP/DOWN COUNTER (ON Semiconductor)
  • MC10E137 - 5V?ECL 8?Bit Ripple Counter (ON Semiconductor)
Other Datasheets by Motorola

Full PDF Text Transcription

Click to expand full text

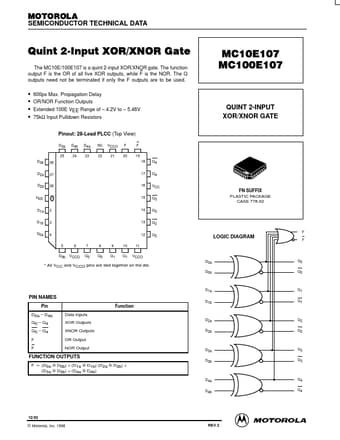

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quint 2ĆInput XOR/XNOR Gate The MC10E/100E107 is a quint 2-input XOR/XNOR gate. The function output F is the OR of all five XOR outputs, while F is the NOR. The Q outputs need not be terminated if only the F outputs are to be used. • 600ps Max. Propagation Delay • OR/NOR Function Outputs • Extended 100E VEE Range of – 4.2V to – 5.46V • 75kΩ Input Pulldown Resistors Pinout: 28-Lead PLCC (Top View) D3a D4b D4a 25 24 23 D3b 26 NC VCCO F 22 21 20 F 19 18 Q4 D2a 27 17 Q4 D2b 28 16 VCC VEE 1 15 Q3 D1a 2 14 Q3 D1b 3 13 Q2 D0a 4 12 Q2 5 6 7 8 9 10 11 D0b VCCO Q0 Q0 Q1 Q1 VCCO * All VCC and VCCO pins are tied together on the die.
