MC10EP116

Hex Differential Line Receiver

MC10EP116 Features

* ON D DOES NOT INCLUDE DAMBAR PROTRUSION. DAMBAR PROTRUSION SHALL NOT CAUSE THE D DIMENSION TO EXCEED 0.520 (0.020). 8. MINIMUM SOLDER PLATE THICKNESS SHALL BE 0.0076 (0.0003). 9. EXACT SHAPE OF EACH CORNER MAY VARY FROM DEPICTION. MILLIMETERS MIN MAX 7.000 BSC 3.500 BSC 7.000 BSC 3.500 BSC 1.400 1.6

MC10EP116 General Description

PIN D[0:5], D[0:5] Q[0:5], Q[0:5] VBB VCC VEE FUNCTION ECL Differential Data Inputs ECL Differential Data Outputs Reference Voltage Output Positive Supply Negative, 0 Supply ORDERING INFORMATION Device MC10EP116FA MC10EP116FAR2 Package TQFP TQFP Shipping 250 Units/Tray 2000 Tape & Reel © Semicondu.

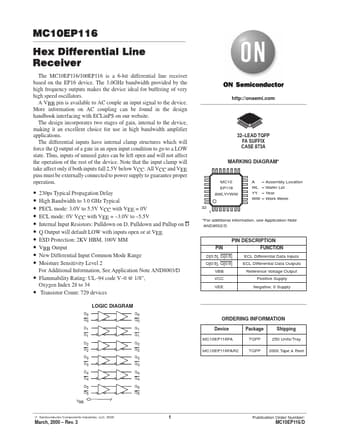

MC10EP116 Datasheet (122.81 KB)

Preview of MC10EP116 PDF

Datasheet Details

Part number:

MC10EP116

Manufacturer:

ON Semiconductor ↗

File Size:

122.81 KB

Description:

Hex differential line receiver.
MC10EP116 Hex Differential Line Receiver The MC10EP116/100EP116 is a 6-bit differential line receiver based on the EP16 device. The 3.0GHz bandwidth p.
