MC74VHC50 Datasheet - ON Semiconductor

MC74VHC50 - Hex Buffer

MC74VHC50 Hex Buffer The MC74VHC50 is an advanced high speed CMOS buffer fabricated with silicon gate CMOS technology.

The internal circuit is composed of three stages, including a buffered output which provides high noise immunity and stable output.

The inputs tolerate voltages up to 7 V, allowing the interface of 5 V systems to 3 V systems.

High Speed: tPD = 3.8 ns (Typ) at VCC = 5 V Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C High Noise Immunity: VNIH =

MC74VHC50_ONSemiconductor.pdf

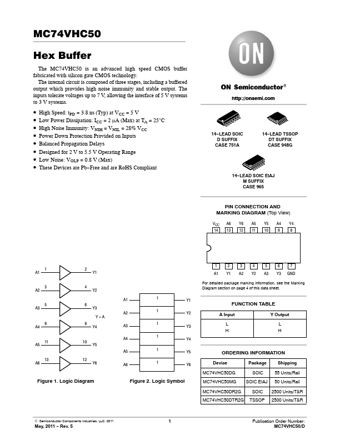

Preview of MC74VHC50 PDF
MC74VHC50 Datasheet Preview Page 2 MC74VHC50 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74VHC50

Manufacturer:

ON Semiconductor ↗

File Size:

130.62 KB

Description:

Hex buffer.
