NB2879A - Reduced EMI Clock Synthesizer

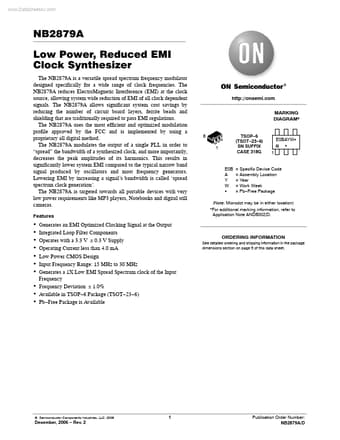

The NB2879A by ON Semiconductor is a Reduced EMI Clock Synthesizer. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the NB2879A Reduced EMI Clock Synthesizer datasheet (ON Semiconductor).

NB2879A Product details

Description

Supply Voltages Frequency Range Cycle to Cycle Jitter Output Duty Cycle Output Rise and Fall Times Modulation Equation Frequency Deviation VDD = 3.3 V "0.3 V VSS Specification 15 MHz < CLKIN < 30 MHz 300 ps (maximum) 40 / 60% (worst case) 1.1 ns (maximum) FIN/640 "1% REFOUT XOUT XIN/CLKIN 1 2 3 6 VSS ModOUT VDD NB2879A 5 4 Figure 2. Pin Configuration Table 2. PIN DESCRIPTION Pin # 1 2 3 4 5 6 Pin Name REFOUT XOUT XIN/CLKIN VDD ModOUT VSS Type O O I P O P Buffered output
