NCP5623C - RGB LED Driver

ON Semiconductor

📥 Download Datasheet

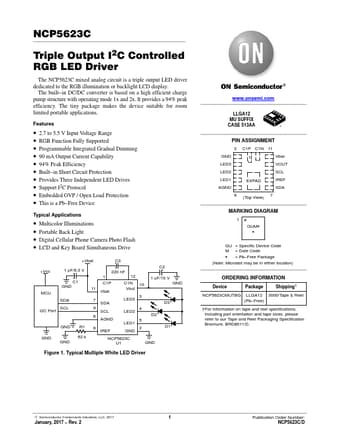

NCP5623C Datasheet Preview — Preview of NCP5623C PDF

Datasheet Details

Part number	NCP5623C
Manufacturer	ON Semiconductor
File Size	88.61 KB
Description	RGB LED Driver
Datasheet	NCP5623C_ONSemiconductor.pdf

NCP5623C Product details

Description

1 C1P POWER One side of the external charge pump capacitor (CFLY ) is connected to this pin, associated with C1N, pin 12 (Note 1).2 GND POWER This pin is the GROUND signal for the analog and digital blocks and must be connected to the system ground.This pin is the GROUND reference for the DC/DC converter and the output current control.The pin must be connected to the system ground, a ground plane being strongly recommended.3 LED3 INPUT, This pin sinks to ground and monitors the cur

Features

2.7 to 5.5 V Input Voltage Range.
RGB Function Fully Supported.
Programmable Integrated Gradual Dimming.
90 mA Output Current Capability.
94% Peak Efficiency.
Built.
in Short Circuit Protection.
Provides Three Independent LED Drives.
Support I2C Protocol.
Embedded OVP / Open Load Protection.
This is a Pb.
Free Device Typical.
