NCP580

CMOS LDO Regulator

NCP580 Features

* ăUltra-Low Dropout Voltage of 150 mV at 100 mA

* ăLow Output Noise of 30 mVrms without Noise Reduction Cap

* ăExcellent Line Regulation of 0.02%/V

* ăExcellent Load Regulation of 12 mV

* ăHigh Output Voltage Accuracy of "1.5%

* ăLow Iq Current of 90 mA

NCP580 General Description

Pin Symbol Description 1 Vout Regulated output voltage. 2 GND Power supply ground. 3 CE Chip enable pin. 4 Vin Power supply input voltage. MAXIMUM RATINGS Rating Symbol Value Unit Input Voltage Vin 6.5 V Input Voltage (CE Pin) VCE -0.3 to Vin +0.3 V Output Voltage Vout -0.3 to .

NCP580 Datasheet (84.47 KB)

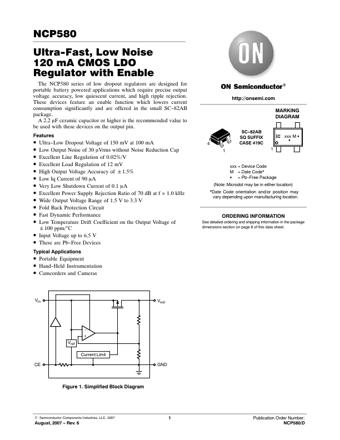

Preview of NCP580 PDF

Datasheet Details

Part number:

NCP580

Manufacturer:

ON Semiconductor ↗

File Size:

84.47 KB

Description:

Cmos ldo regulator.
NCP580 Ultra-Fast, Low Noise 120 mA CMOS LDO Regulator with Enable The NCP580 series of low dropout regulators are designed for portable battery power.
