NCP584

Tri-Mode 200mA CMOS LDO Regulator

NCP584 Features

* Tri

* mode Operation

* Low Dropout Voltage of 400 mV at 200 mA, Output Voltage = 0.9 V 300 mV at 200 mA, Output Voltage = 1.2 V 200 mV at 200 mA, Output Voltage = 1.8 V

* Excellent Line Regulation of 0.05%/V (0.10% LP Mode)

* Excellent Load Regulation of 10 mV

NCP584 General Description

SOT23

*5 Pin Name 1 Vin 2 GND 3 CE or CE 4 ECO 5 Vout NCP584 Description Power supply input voltage. Power supply ground. Chip enable pin. Mode alternative pin. (VECO = Vin for FT mode; VECO = GND for LP mode) Regulated output voltage. MAXIMUM RATINGS Rating Symbol Value Unit Inp.

NCP584 Datasheet (127.89 KB)

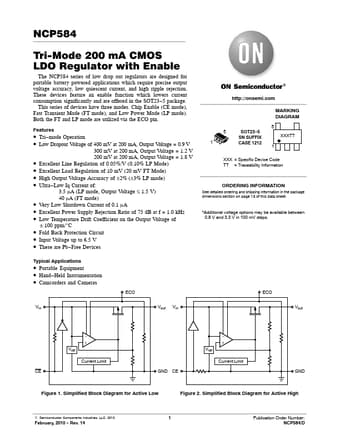

Preview of NCP584 PDF

Datasheet Details

Part number:

NCP584

Manufacturer:

ON Semiconductor ↗

File Size:

127.89 KB

Description:

Tri-mode 200ma cmos ldo regulator.
NCP584 Tri-Mode 200 mA CMOS LDO Regulator with Enable The NCP584 series of low drop out regulators are designed for portable battery powered applicat.
