NCV47700 - 5V to 20V Adjustable Low Dropout Regulator

ON Semiconductor

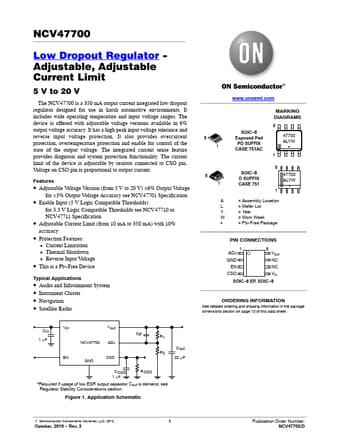

NCV47700 Datasheet Preview — Preview of NCV47700 PDF

Datasheet Details

Part number	NCV47700
Manufacturer	ON Semiconductor ↗
File Size	503.62 KB
Description	5V to 20V Adjustable Low Dropout Regulator
Datasheet	NCV47700_ONSemiconductor.pdf

NCV47700 Product details

Description

Pin No. 8 EP Pin No.SOIC 8 Pin Name 1 1 ADJ 2 2 GND 3 3 EN 4 4 CSO 5 6 7 8 EPAD 5 Vin 6 NC 7 NC 8 Vout EPAD Description Adjustable Voltage Setting Input.See Application Section for more details.Power Supply Ground.Enable Input; low level disables the IC.Current Sense Output, Current Limit setting and Output Current value information.See Application Section for more details.Positive Power Supply Input.Not Connected Not Connected Re

Features

Adjustable Voltage Version (from 5 V to 20 V) ±6% Output Voltage for ±3% Output Voltage Accuracy see NCV47701 Specification.
Enable Input (5 V Logic Compatible Thresholds) for 3.3 V Logic Compatible Thresholds see NCV47710 or NCV47711 Specification.
Adjustable Current Limit (from 10 mA to 350 mA) with 10% accuracy.
Protection Features:.
Current Limitation.
Thermal Shutdown.
Reverse Input Voltage.
This is a Pb.
Free D.
