NCV47701 Datasheet - ON Semiconductor

NCV47701 - 5V to 20V Adjustable Low Dropout Regulator

Pin No.

SOIC *8 EP Pin No.

SOIC *8 Pin Name 1 1 ADJ 2 2 GND 3 3 EN 4 4 CSO 5 6 7 8 EPAD 5 Vin 6 NC 7 NC 8 Vout * EPAD Description Adjustable Voltage Setting Input.

See Application Section for more details.

Power Supply Ground.

Enable Input; low level

NCV47701 Low Dropout Regulator Adjustable Current Limit 5 V to 20 V The NCV47701 is a 350 mA output current integrated low dropout regulator designed for use in harsh automotive environments.

It includes wide operating temperature and input voltage ranges.

The device is offered with adjustable voltage versions available in 3% output voltage accuracy.

It has a high peak input voltage tolerance and reverse input voltage protection.

It also provides overcurrent protection, overtemperature protecti

NCV47701 Features

* Adjustable Voltage Version (from 5 V to 20 V) ± 3% Output Voltage for ±6% Output Voltage Accuracy see NCV47700 Specification

* Enable Input (5 V Logic Compatible Thresholds) for 3.3 V Logic Compatible Thresholds see NCV47710 or NCV47711 Specification

* Adjustable Current Li

NCV47701_ONSemiconductor.pdf

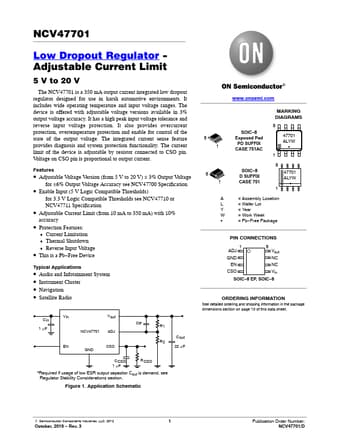

Preview of NCV47701 PDF
NCV47701 Datasheet Preview Page 2 NCV47701 Datasheet Preview Page 3

Datasheet Details

Part number:

NCV47701

Manufacturer:

ON Semiconductor ↗

File Size:

505.68 KB

Description:

5v to 20v adjustable low dropout regulator.
