NCV47710 - 5V to 20V Adjustable LDO Regulator

ON Semiconductor

📥 Download Datasheet

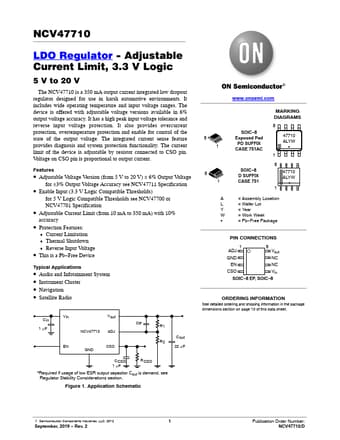

NCV47710 Datasheet Preview — Preview of NCV47710 PDF

Datasheet Details

Part number	NCV47710
Manufacturer	ON Semiconductor
File Size	503.92 KB
Description	5V to 20V Adjustable LDO Regulator
Datasheet	NCV47710-ONSemiconductor.pdf

NCV47710 Product details

Description

Pin No. 8 EP Pin No.SOIC 8 Pin Name 1 1 ADJ 2 2 GND 3 3 EN 4 4 CSO 5 6 7 8 EPAD 5 Vin 6 NC 7 NC 8 Vout EPAD Description Adjustable Voltage Setting Input.See Application Section for more details.Power Supply Ground.Enable Input; low level disables the IC.Current Sense Output, Current Limit setting and Output Current value information.See Application Section for more details.Positive Power Supply Input.Not Connected Not Connected Re

Features

Adjustable Voltage Version (from 5 V to 20 V) ± 6% Output Voltage for ±3% Output Voltage Accuracy see NCV47711 Specification.
Enable Input (3.3 V Logic Compatible Thresholds) for 5 V Logic Compatible Thresholds see NCV47700 or NCV47701 Specification.
Adjustable Current Limit (from 10 mA to 350 mA) with 10% accuracy.
Protection Features:.
Current Limitation.
Thermal Shutdown.
Reverse Input Voltage.
This is a Pb.
Free.
