Part number	NCV47722
Manufacturer	ON Semiconductor
File Size	192.82 KB
Description	High Side Switch
Datasheet	NCV47722-ONSemiconductor.pdf

NCV47722 Product details

Description

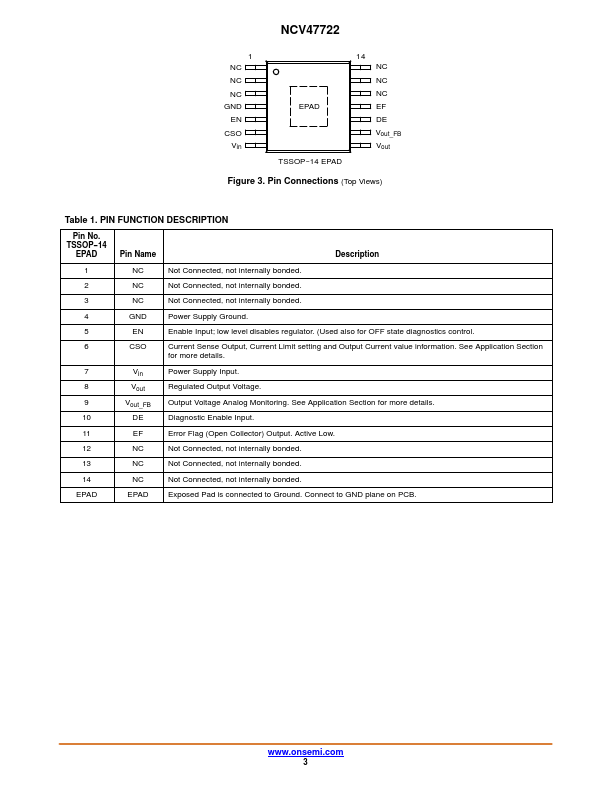

Pin No.

Features

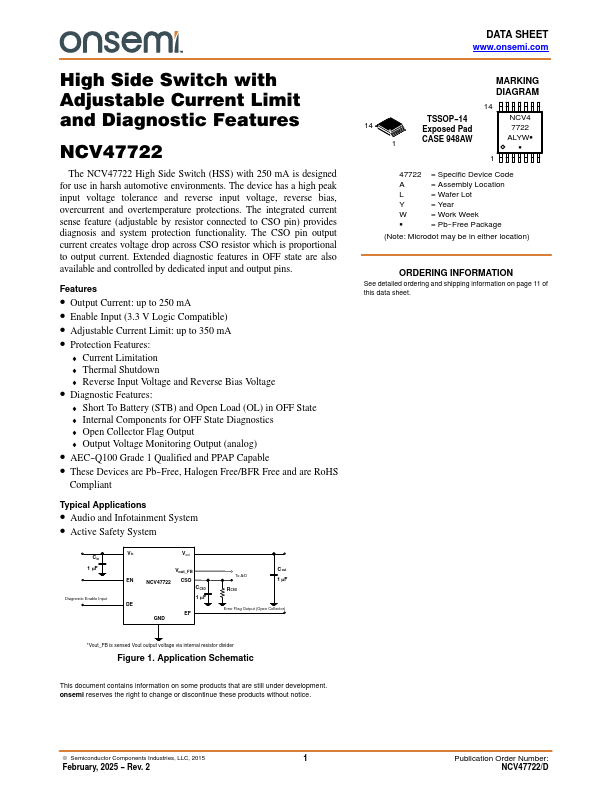

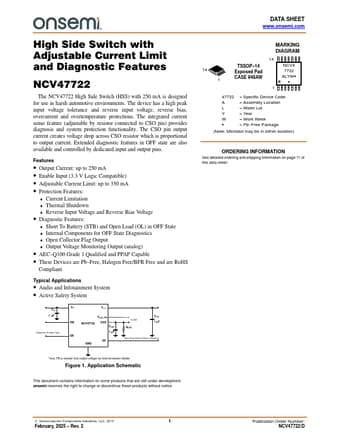

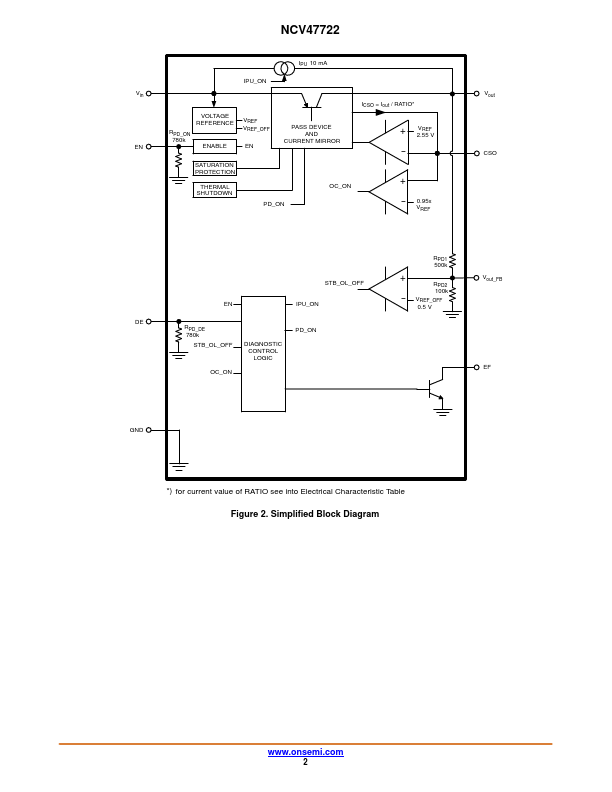

NCV47722 The NCV47722 High Side Switch (HSS) with 250 mA is designed for use in harsh automotive environments. The device has a high peak input voltage tolerance and reverse input voltage, reverse bias, overcurrent and overtemperature protections. The integrated current sense feature (adjustable by resistor connected to CSO pin) provides diagnosis and system protection functionality. The CSO pin output current creates voltage drop across CSO resistor which is proportional to output current. Ext.
