NCV47711 Datasheet - ON Semiconductor

NCV47711 - 5V to 20V Adjustable LDO

Pin No.

1 2 3 4 5 6 7 8 EPAD Pin Name ADJ GND EN CSO Vin NC NC Vout EPAD Description Adjustable Voltage Setting Input.

See Application Section for more details.

Power Supply Ground.

Enable Input; low level disables the IC.

Current Sense Output, Current Limit setting and Output Current value informat

NCV47711 5 V to 20 V Adjustable LDO with Adjustable Current Limit and 3.3 V Logic Compatible Enable Input The NCV47711 is a 350 mA output current integrated low dropout regulator designed for use in harsh automotive environments.

It includes wide operating temperature and input voltage ranges.

The device is offered with adjustable voltage versions available in 3% output voltage accuracy.

It has a high peak input voltage tolerance and reverse input voltage protection.

It also provides overcurrent

NCV47711 Features

* http://onsemi.com MARKING DIAGRAM 8 8 1 SOIC

* 8 Exposed Pad PD SUFFIX CASE 751AC 1 A L Y W G = Assembly Location = Wafer Lot = Year = Work Week = Pb

* Free Package 47711 ALYW G

* Adjustable Voltage Version (from 5 V to 20 V) ± 3% Output Voltage

* Enable Input (3.3 V Log

NCV47711_ONSemiconductor.pdf

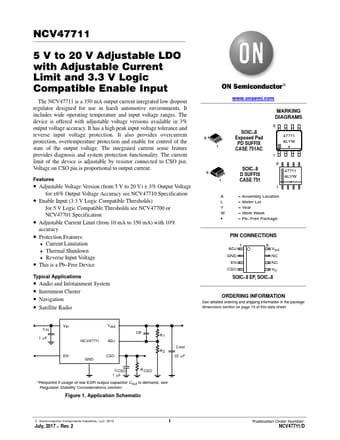

Preview of NCV47711 PDF
