NCV7356

Single Wire CAN Transceiver

NCV7356 Features

* undervoltage lockout, timeout for faulty blocked input signals, output blanking time in case of bus ringing and a very low sleep mode current. The device is compliant with GMW3089V2.4 General Motors Corporation specification. Features

* Fully Compatible with J2411 Single Wire CAN Specificati

NCV7356 General Description

SOIC

*8 SOIC

*14 Symbol Description 1 2 TxD Transmit data from microprocessor to CAN. 2 3 MODE0 Operating mode select input 0. 3 4 MODE1 Operating mode select input 1. 4 5 RxD Receive data from CAN to microprocessor. 5 10 VBAT Battery input voltage. 6 11 LOAD Resist.

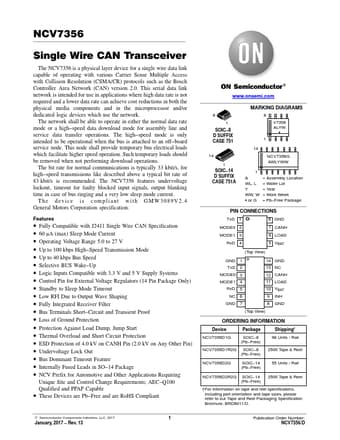

NCV7356 Datasheet (202.47 KB)

Preview of NCV7356 PDF

Datasheet Details

Part number:

NCV7356

Manufacturer:

ON Semiconductor ↗

File Size:

202.47 KB

Description:

Single wire can transceiver.
NCV7356 Single Wire CAN Transceiver The NCV7356 is a physical layer device for a single wire data link capable of operating with various Carrier Sens.
