NJW0302G - Complementary NPN?PNP Power Bipolar Transistors

Features

Exceptional Safe Operating Area.
NPN/PNP Gain Matching within 10% from 50 mA to 3 A.
Excellent Gain Linearity.
High BVCEO.
High Frequency.
These Devices are Pb-Free and are RoHS Compliant Benefits.
Reliable Performance at Higher Powers.
Symmetrical Characteristics in Complementary Configurations.
Accurate Reproduction of Input Signal.
Greater Dynamic Range.
High Amplifier Bandwidth.

ON Semiconductor

Datasheet Details

Part number	NJW0302G
Manufacturer	ON Semiconductor
File Size	170.59 KB
Description	Complementary NPN?PNP Power Bipolar Transistors
Datasheet	NJW0302G Datasheet

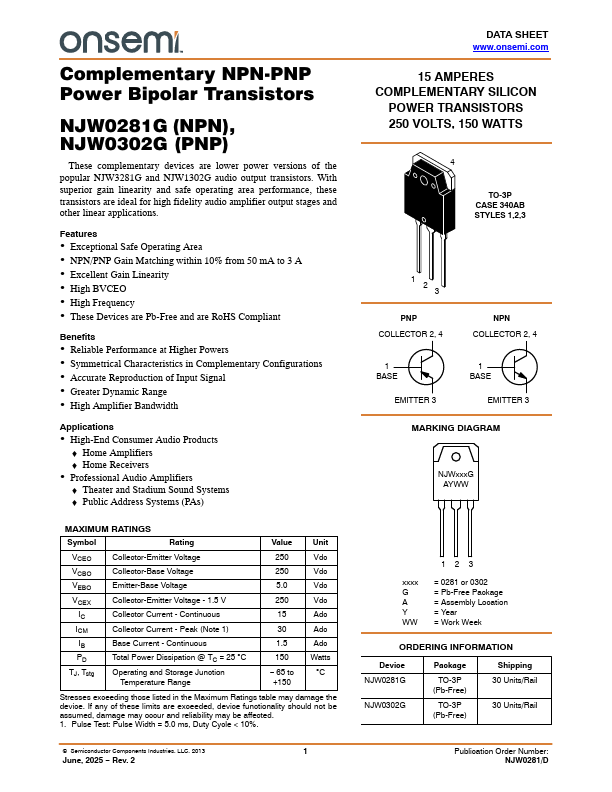

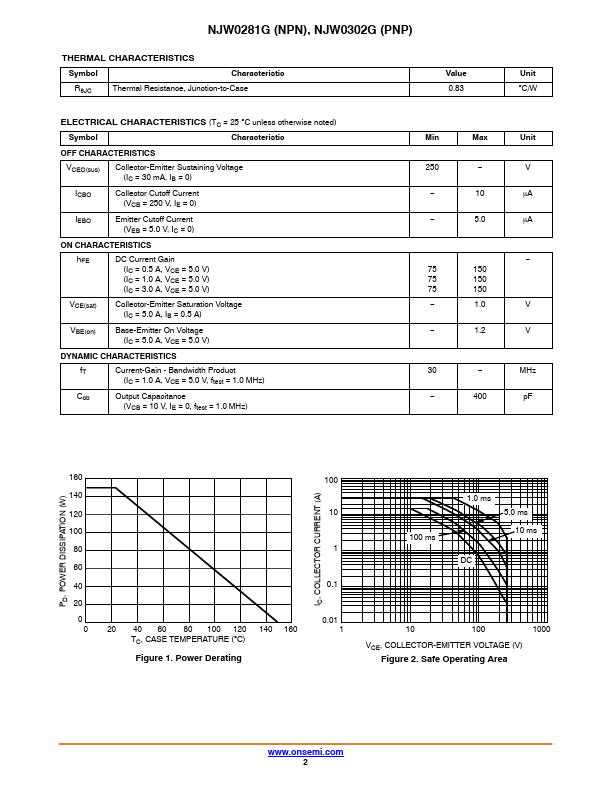

Additional preview pages of the NJW0302G datasheet.
