NLAS1053 - 2:1 Mux/Demux Analog Switches

Datasheet Summary

Features

  • High Speed: tPD = 1 ns (Typ) at VCC = 5.0 V.
  • Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C.
  • High Bandwidth, Improved Linearity, and Low RDSON.
  • INH Pin Allows a Both Channels ‘OFF’ Condition (With a High).
  • RDSON ≅ 25 W, Performance Very Similar to the NLAS4053.
  • Break Before Make Circuitry, Prevents Inadvert.

📥 Download Datasheet

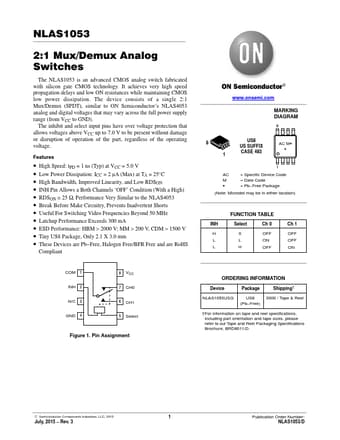

Datasheet preview – NLAS1053

Datasheet Details

Part number NLAS1053
Manufacturer ON Semiconductor
File Size 110.79 KB
Description 2:1 Mux/Demux Analog Switches
Datasheet download datasheet NLAS1053 Datasheet
Additional preview pages of the NLAS1053 datasheet.

📁 Similar Datasheet

  • NLAS2750 - Low Voltage Dual SPDT Analog Switch (ON Semiconducto)
  • NLAS323 - Dual SPST Analog Switch (ON)
  • NLAS324 - Dual SPST Analog Switch (ON)
  • NLAS3699 - Dual DPDT Switch (ON)
  • NLAS4053 - Analog Multiplexer/Demultiplexer (ON)
  • NLAS4599 - Low Voltage Single Supply SPDT Analog Switch (ON)
  • NLAS4684 - Ultra-Low Resistance Dual SPDT Analog Switch (ON)
  • NLAST4051 - Analog Multiplexer/Demultiplexer (ON)
  • NLA9306 - Voltage-Level Translator (ON Semiconducto)
Other Datasheets by ON Semiconductor
  • NLAS2066 - Ultra-Small Dual Single Pole / Single Throw Analog Switch
  • NLAS3157 - Low Voltage SPDT Mux / Demux Analog Switch
  • NLAS3158 - Low Voltage Dual SPDT Analog Switch Dual 2:1 Multiplexer
  • NLAS325 - Dual SPST Analog Switch
  • NLAS3257 - Low Voltage SPDT Mux / Demux Analog Switch
  • NLAS3257A - Mux / Demux Analog Switch
  • NLAS3699B - Dual DPDT Switch
  • NLAS3799 - Dual DPDT Ultra Low RON Switch

Full PDF Text Transcription

Click to expand full text
NLAS1053 2:1 Mux/Demux Analog Switches The NLAS1053 is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. It achieves very high speed propagation delays and low ON resistances while maintaining CMOS low power dissipation. The device consists of a single 2:1 Mux/Demux (SPDT), similar to ON Semiconductor’s NLAS4053 analog and digital voltages that may vary across the full power supply range (from VCC to GND). The inhibit and select input pins have over voltage protection that allows voltages above VCC up to 7.0 V to be present without damage or disruption of operation of the part, regardless of the operating voltage. Features • High Speed: tPD = 1 ns (Typ) at VCC = 5.
