NLAS2066 - Ultra-Small Dual Single Pole / Single Throw Analog Switch

Datasheet Summary

Features

Same Pinout as the Popular NLAS323.
Excellent Performance.
Maximum RDSON 15 W at 3.0 V.
Matching Between the Switches "1.5 W at 3.0 V.
1.65 V to 5.5 V Operating Range.
Lower Threshold Voltages for LVTTL/CMOS Levels.
Ultra.
Low Charge Injection v 4.8 pC at 3.0 V.
Low Standby Power.
ICC = 1.0 nA (max) @ TA = 25°C.
CMOS Level Compatibility.
OVT.
(Pins 1, 3, 5, and 7) These Pins may be Subj.

Datasheet Details

Part number	NLAS2066
Manufacturer	ON Semiconductor
File Size	89.28 KB
Description	Ultra-Small Dual Single Pole / Single Throw Analog Switch
Datasheet	NLAS2066 Datasheet

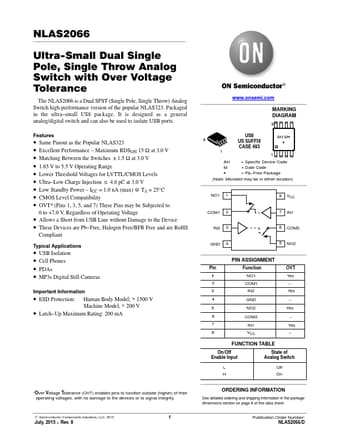

Additional preview pages of the NLAS2066 datasheet.

📁 Similar Datasheet

NLAS2750 - Low Voltage Dual SPDT Analog Switch (ON Semiconducto)

NLAS323 - Dual SPST Analog Switch (ON)

NLAS324 - Dual SPST Analog Switch (ON)

NLAS3699 - Dual DPDT Switch (ON)

NLAS4053 - Analog Multiplexer/Demultiplexer (ON)

NLAS4599 - Low Voltage Single Supply SPDT Analog Switch (ON)

NLAS4684 - Ultra-Low Resistance Dual SPDT Analog Switch (ON)

NLAST4051 - Analog Multiplexer/Demultiplexer (ON)

NLA9306 - Voltage-Level Translator (ON Semiconducto)

Full PDF Text Transcription

Click to expand full text

NLAS2066 Ultra-Small Dual Single Pole, Single Throw Analog Switch with Over Voltage Tolerance The NLAS2066 is a Dual SPST (Single Pole, Single Throw) Analog Switch high performance version of the popular NLAS323. Packaged in the ultra−small US8 package. It is designed as a general analog/digital switch and can also be used to isolate USB ports. Features • Same Pinout as the Popular NLAS323 • Excellent Performance – Maximum RDSON 15 W at 3.0 V • Matching Between the Switches "1.5 W at 3.0 V • 1.65 V to 5.5 V Operating Range • Lower Threshold Voltages for LVTTL/CMOS Levels • Ultra−Low Charge Injection v 4.8 pC at 3.0 V • Low Standby Power – ICC = 1.0 nA (max) @ TA = 25°C • CMOS Level Compatibility • OVT* (Pins 1, 3, 5, and 7) These Pins may be Subjected to 0 to +7.
