NTBLS1D5N08MC Datasheet - ON Semiconductor

NTBLS1D5N08MC, N-Channel Power MOSFET

MOSFET - Power, Single N-Channel, TOLL 80 V, 1.53 mW, 298 A NTBLS1D5N08MC .

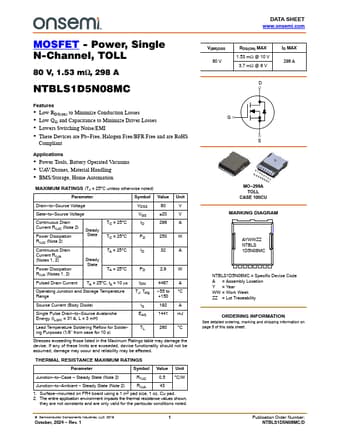

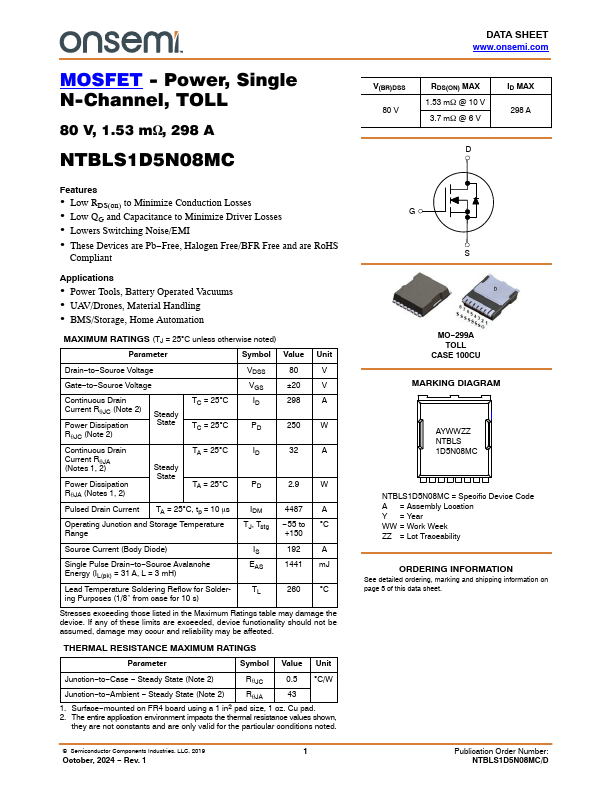

datasheet Preview Page 1 from Datasheet4u.com

NTBLS1D5N08MC-ONSemiconductor.pdf

NTBLS1D5N08MC Datasheet Preview — Preview of NTBLS1D5N08MC PDF

Datasheet Details

Part number:

NTBLS1D5N08MC

Manufacturer:

ON Semiconductor ↗

File Size:

448.91 KB

Description:

N-Channel Power MOSFET

Features

* Low RDS(on) to Minimize Conduction Losses
* Low QG and Capacitance to Minimize Driver Losses
* Lowers Switching Noise/EMI
* These Devices are Pb

Applications

* Power Tools, Battery Operated Vacuums
* UAV/Drones, Material Handling
* BMS/Storage, Home Automation MAXIMUM RATINGS (TJ = 25C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage VDSS 80 V Gate
* to
* Source Voltage VGS 20
