P2811A - Low Power EMI Reduction IC

P2811A Description

P2811A/B and P2812A/B and P2814A/B Low Power EMI Reduction IC .
The P28XX devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 10MHz to 4.

P2811A Features

* FCC approved method of EMI attenuation
* Provides up to 15dB EMI reduction
* Generates a 1x, 2x and 4x low EMI spread spectrum clock of the input frequency o 1x: P2811A/B o 2x: P2812A/B o 4x: P2814A/B
* Optimized for input frequency range from 10MHz to 40MHz

P2811A Applications

* The P28XX is targeted towards EMI management for memory and LVDS interfaces in mobile graphic chipsets and high-speed digital applications such as PC peripheral devices, consumer electronics, and embedded controller systems. ©2010 SCILLC. All rights reserved. JUNE 2011
* Rev. 2 Publication

📥 Download Datasheet

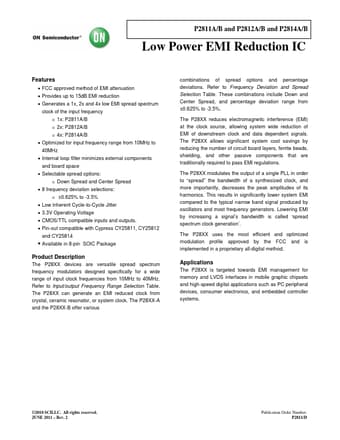

Preview of P2811A PDF
datasheet Preview Page 2 datasheet Preview Page 3
