P2812B, P2811A, Low Power EMI Reduction IC

P2811A/B and P2812A/B and P2814A/B Low Power EMI Reduction IC .
The P28XX devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 10MHz to 4.

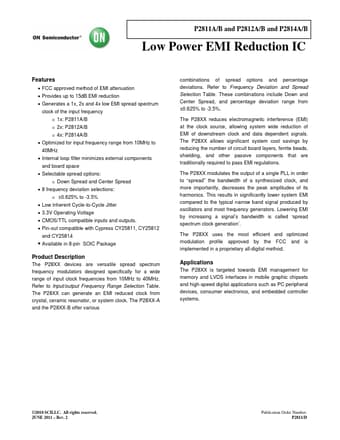

datasheet Preview Page 1 from Datasheet4u.com

P2811A-ONSemiconductor.pdf

P2812B Datasheet Preview — This datasheet PDF includes multiple part numbers: P2812B, P2811A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P2812B, P2811A

Manufacturer:

ON Semiconductor ↗

File Size:

128.25 KB

Description:

Low Power EMI Reduction IC

Note:

This datasheet PDF includes multiple part numbers: P2812B, P2811A.
Please refer to the document for exact specifications by model.

Features

* FCC approved method of EMI attenuation
* Provides up to 15dB EMI reduction
* Generates a 1x, 2x and 4x low EMI spread spectrum clock of the input frequency o 1x: P2811A/B o 2x: P2812A/B o 4x: P2814A/B
* Optimized for input frequency range from 10MHz to 40MHz

Applications

* The P28XX is targeted towards EMI management for memory and LVDS interfaces in mobile graphic chipsets and high-speed digital applications such as PC peripheral devices, consumer electronics, and embedded controller systems. ©2010 SCILLC. All rights reserved. JUNE 2011
* Rev. 2 Publication
