PT301ED - DC Brushless Motor Driver

Product Overview

PROLIFIC

Datasheet Details

Part number	PT301ED
Manufacturer	PROLIFIC
File Size	449.53 KB
Description	DC Brushless Motor Driver
Datasheet	PT301ED Datasheet
Note	This datasheet PDF includes multiple part numbers: PT301ED, PT301EA. Please refer to the document for exact specifications by model.

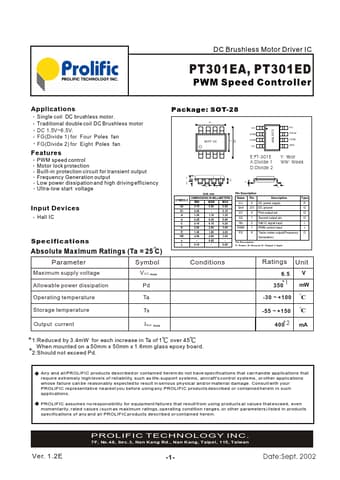

Additional preview pages of the PT301ED datasheet.

Product details

Description

Name Pin Description Type VCC 6 DC power supply Gnd 2/3 DC ground P G O1 4 First output pin O O2 1 Second output pin O Hin 5 Hall IC signal input I PWM 7 PWM control input I FG 8 Tacho meter output(Frequency O Generation) Pin Description P: Power, G: Ground, O: Output, I: Input Conditions Ratings Unit 6.5 350 1 V mW -30 ~ +100 OC -55 ~ +150 OC 400 2 mA 1:Reduced by 3.4mW for each increase in Ta of 1 over 45 2:WShhoeunldmnooutnetex d on a 50mm ceed Pd.

Features

PWM speed control Motor lock protection Built-in protection circuit for transient output Frequency Generation output Low power dissipation and high driving efficiency Ultra-low start voltage Input Devices Hall IC Specifications Absolute Maximum Ratings (Ta = 25 C) Parameter Symbol Maximum supply voltage VCC max Allowable power dissipation Pd Operating temperature Ta Storage temperature Ts Output current I0ut max Package: SOT-28 D SOT-28 EAYWW HE E O2 GND GND O1 1 2 3 4 8 FG 7 P.
