PT3602A - General purpose Hall-effect Latch

Product Overview

PROLIFIC

Part number	PT3602A
Manufacturer	PROLIFIC
File Size	862.08 KB
Description	General purpose Hall-effect Latch
Datasheet	PT3602A Datasheet

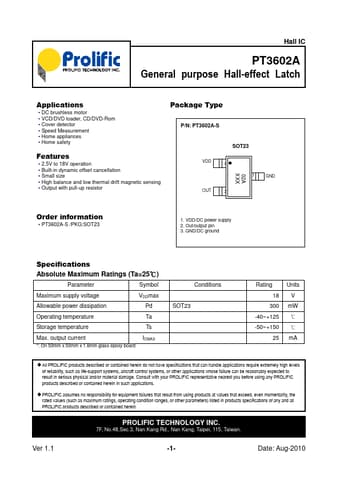

Additional preview pages of the PT3602A datasheet.

2.5V to 18V operation Built-in dynamic offset cancellation Small size High balance and low thermal drift magnetic sensing Output with pull-up resistor VDD 1 OUT 2 02A XXX 3 GND Order information PT3602A-S /PKG:SOT23 1. VDD/DC power supply 2. Out/output pin 3. GND/DC ground Specifications Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Maximum supply voltage Allowable power dissipation VDDmax Pd Operating temperature Ta Storage temperature Ts Max. output current IOMAX.
