PT3602B General purpose Hall-effect Latch

PT3602B Description

Hall IC PT3602B General purpose Hall-effect Latch Applications DC brushless motor VCD/DVD loader, CD/DVD-Rom Cover detector Speed Measurement Home ap.

PT3602B Features

* 2.5V to 18V operation Built-in dynamic offset cancellation Small size High balance and low thermal drift magnetic sensing Output with pull-up resistor VDD 1 OUT 2 02B XXX 3 GND Order information PT3602B-S /PKG:SOT23 1. VDD/DC power supply 2. Out/output pin 3. GND/DC ground Specifications A

📥 Download Datasheet

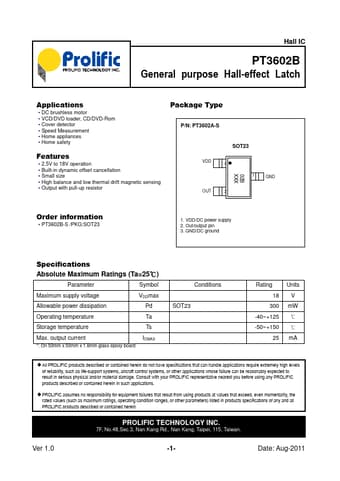

Preview of PT3602B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3602B
Manufacturer
PROLIFIC
File Size
861.98 KB
Datasheet
PT3602B-PROLIFIC.pdf
Description
General purpose Hall-effect Latch
