PT3621A General purpose Hall-effect Switch

PT3621A Description

Hall IC PT3621A General purpose Hall-effect Switch Applications * VCD/DVD loader, CD/DVD-Rom * Cover detector * Speed Measurement * H.

PT3621A Features

* 2.5V to 18V operation
* Built-in dynamic offset cancellation
* Small size
* High balance and low thermal drift magnetic sensing om Order information . c
* PT3621A-LH /PKG:SOT23 h
* PT3621A-UA /PKG:TO92 c
* Temperature(T): K inte Specifications Absolute Maximum

PT3621A Applications

* VCD/DVD loader, CD/DVD-Rom
* Cover detector
* Speed Measurement
* Home appliances

📥 Download Datasheet

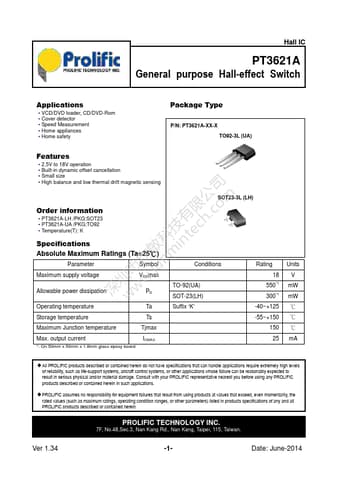

Preview of PT3621A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3621A
Manufacturer
PROLIFIC
File Size
456.97 KB
Datasheet
PT3621A-PROLIFIC.pdf
Description
General purpose Hall-effect Switch
