PT3617 - Hi-sensitivity Hall-effect Latch

PT3617 Description

Hall IC PT3617 Hi-sensitivity Hall-effect Latch Applications * DC brushless motors * Proximity Sensor * Tachometers * Magnetic encode.

PT3617 Features

* 2.5V to 38V wide operation voltage
* High sensitivity
* Reverse polarity protection (up to -60V)
* Built-in dynamic offset cancellation
* Open drain output
* High balance and low thermal drift magnetic sensing
* Support 40V load dump test
* Ordering information

PT3617 Applications

* DC brushless motors
* Proximity Sensor
* Tachometers
* Magnetic encoders

📥 Download Datasheet

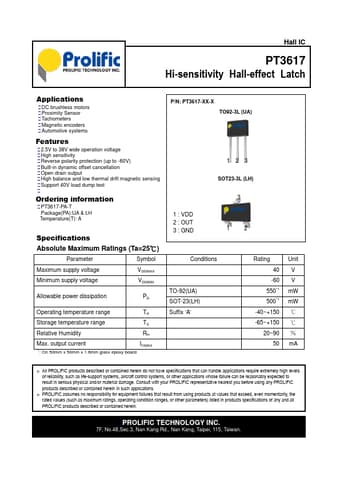

Preview of PT3617 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3617
Manufacturer
Prolific
File Size
651.78 KB
Datasheet
PT3617-Prolific.pdf
Description
Hi-sensitivity Hall-effect Latch
