PT3636 - Hi-sensitivity Unipolar Hall Switch

PT3636 Description

Hall IC PT3636 Hi-sensitivity Unipolar Hall Switch Applications Automotive Brake Pedal Position detection Proximity detection Weak magnets applicatio.

PT3636 Features

* 3.8V to 24V wide operation voltage High accuracy unipolar switch Dynamic offset cancellation Open drain output Low thermal drift magnetic sensing SOT23-3L (LH) Ordering information PT3636-PA-T Package(PA):UA or LH or LT Temperature(T): A or K SOT89-3L (LT) Specifications Absolute Maximum Ratings

📥 Download Datasheet

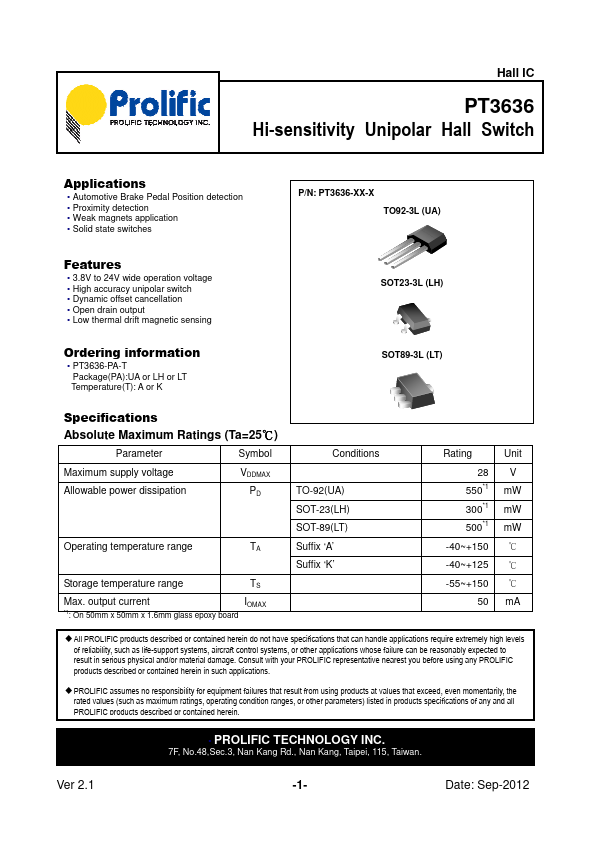

Preview of PT3636 PDF

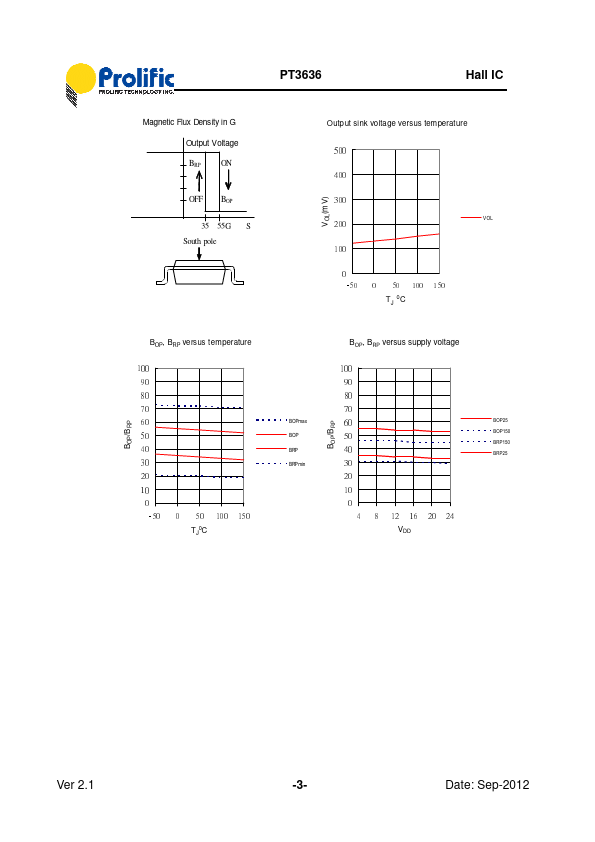

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3636
Manufacturer
Prolific
File Size
1.20 MB
Datasheet
PT3636-Prolific.pdf
Description
Hi-sensitivity Unipolar Hall Switch
