PT3621 General purpose Hall-effect Switch

PT3621 Description

Hall IC PT3621 General purpose Hall-effect Switch Applications VCD/DVD loader, CD/DVD-Rom Cover detector Speed Measurement Home appliances Home safet.

PT3621 Features

* 2.5V to 18V operation Built-in dynamic offset cancellation Small size High balance and low thermal drift magnetic sensing 621 XXX VDD 1 3 GND OUT 2 Order information PT3621-S /PKG:SOT23 1. VDD/DC power supply 2. Out/output pin 3. GND/DC ground Specifications Absolute Maximum Ratings (Ta=25

📥 Download Datasheet

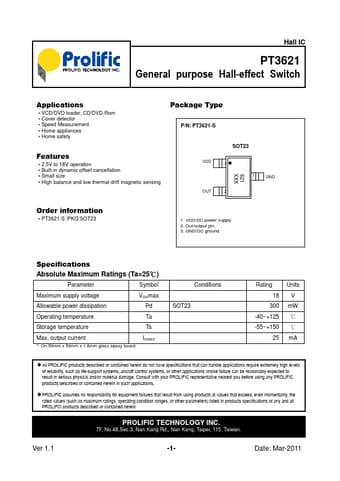

Preview of PT3621 PDF

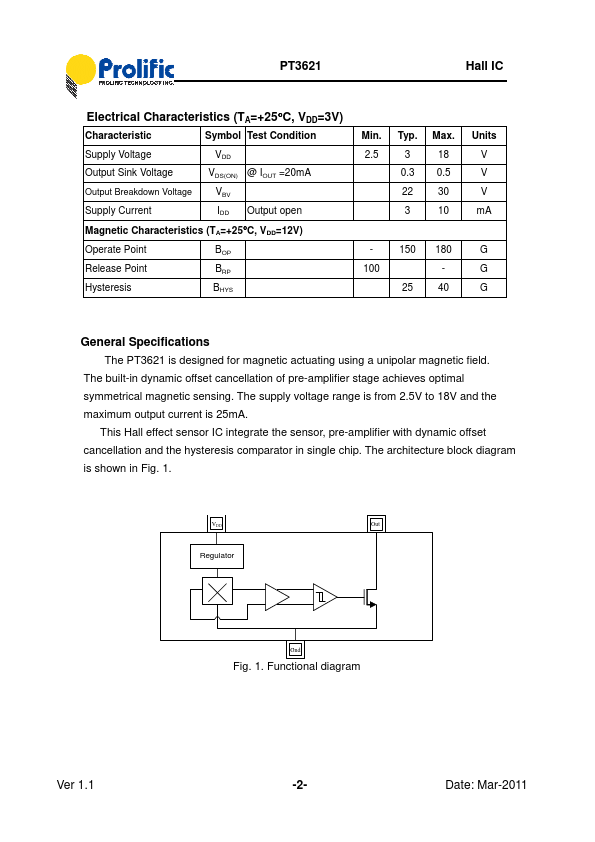

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3621
Manufacturer
PROLIFIC
File Size
833.65 KB
Datasheet
PT3621-PROLIFIC.pdf
Description
General purpose Hall-effect Switch
