PT3612 - Hi-sensitivity Hall-effect Latch

PT3612 Description

Hall IC PT3612 Hi-sensitivity Hall-effect Latch Applications * DC brushless motors * CAM shaft sensors * Rotating speed measurement *.

PT3612 Features

* TO92-3L (UL)
* 3.8V to 24V wide operation voltage
* High sensitivity
* Built-in dynamic offset cancellation
* Small size
* High balance and low thermal drift magnetic sensing
* Lead length 18.7mm ( UL type ) Ordering information m
* PT3612-PA-T o Package(PA):UA or

PT3612 Applications

* DC brushless motors
* CAM shaft sensors
* Rotating speed measurement
* Magnetic encoders
* Automotive systems
* Home appliances

📥 Download Datasheet

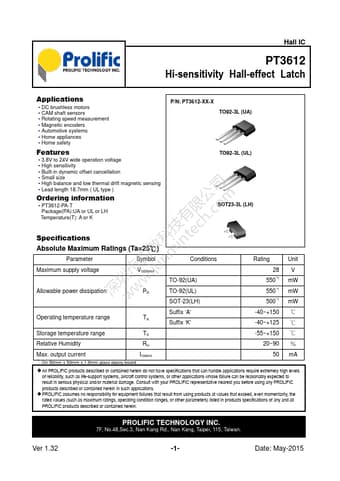

Preview of PT3612 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3612
Manufacturer
Prolific
File Size
645.91 KB
Datasheet
PT3612-Prolific.pdf
Description
Hi-sensitivity Hall-effect Latch
