PT3602 General purpose Hall-effect Latch

PT3602 Description

Hall IC PT3602 General purpose Hall-effect Latch Applications * DC brushless motor * VCD/DVD loader, CD/DVD-Rom * Cover detector * Sp.

PT3602 Features

* 2.5V to 18V operation
* Built-in dynamic offset cancellation
* Small size
* High balance and low thermal drift magnetic sensing
* Output with pull-up resistor . com Order information h
* PT3602-LH /PKG:SOT23 c
* PT3602-UA /PKG:TO92 nminte Specifications . ju Abs

PT3602 Applications

* DC brushless motor
* VCD/DVD loader, CD/DVD-Rom
* Cover detector
* Speed Measurement
* Home appliances

📥 Download Datasheet

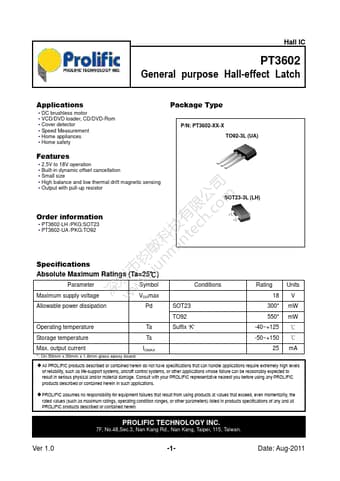

Preview of PT3602 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3602
Manufacturer
PROLIFIC
File Size
442.18 KB
Datasheet
PT3602-PROLIFIC.pdf
Description
General purpose Hall-effect Latch
