C1567 - Silicon NPN Transistor

C1567 Description

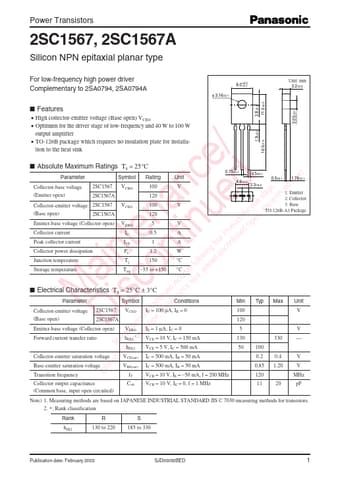

Power Transistors 2SC1567, 2SC1567A Silicon NPN epitaxial planar type For low-frequency high power driver Complementary to 2SA0794, 2SA0794A φ 3.16±.

C1567 Features

* 3.05±0.1
* High collector-emitter voltage (Base open) VCEO
* Optimum for the driver stage of low-frequency and 40 W to 100 W output amplifier
* TO-126B package which requires no insulation plate for installation to the heat sink 1.9±0.1 16.0±1.0 /
* Absolute Maximum
