PI74ST1G00 Datasheet, Gate, Pericom Semiconductor Corporation

PI74ST1G00 Features

  • Gate • High-speed: tPD = 1.8ns typical • Broad operating range: VCC = 1.8V –3.6V • Power down high-impedance inputs/outputs • High output drive: ±24mA at 3V VCC • Package: 5-pin space saving

PDF File Details

Part number:

PI74ST1G00

Manufacturer:

Pericom Semiconductor Corporation

File Size:

307.88kb

Download:

📄 Datasheet

Description:

Sotiny logic 2-input nand gate. The PI74ST1G00 is a 2-input NAND gate that operates over the 1.8V to 3.6V VCC operating range. Pericom’s PI74ST series of products ar

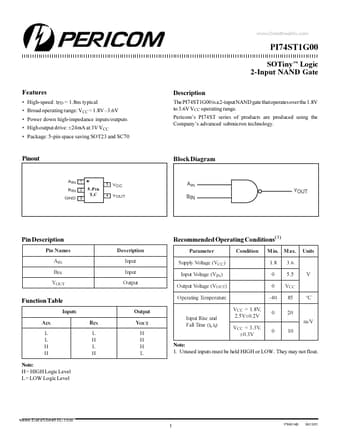

Datasheet Preview: PI74ST1G00 📥 Download PDF (307.88kb)
Page 2 of PI74ST1G00 Page 3 of PI74ST1G00

TAGS

PI74ST1G00
SOTiny
Logic
2-Input
NAND
Gate
Pericom Semiconductor Corporation
