PI74ST1G04

SOTiny Logic Inverter

PI74ST1G04 Features

* • High-speed: tPD = 1.8ns typical • Broad operating range: VCC = 1.8V –3.6V • Power down high-impedance inputs/outputs • High output drive: ±24mA at 3V VCC • Package: 5-pin space saving SOT23 and SC70 Description The PI74ST1G04 is an inverter that operates over the 1.8V to 3.6V VCC operating range.

PI74ST1G04 General Description

The PI74ST1G04 is an inverter that operates over the 1.8V to 3.6V VCC operating range. Pericom’s PI74STseries of products are produced using the Company’s advanced submicron technology. Pinout NC 1 AIN 2 GND 3 5-Pin T,C Block Diagram 5 VCC 4 YOUT AIN YOUT Pin Description Pin Name s AIN YOUT NC.

PI74ST1G04 Datasheet (305.13 KB)

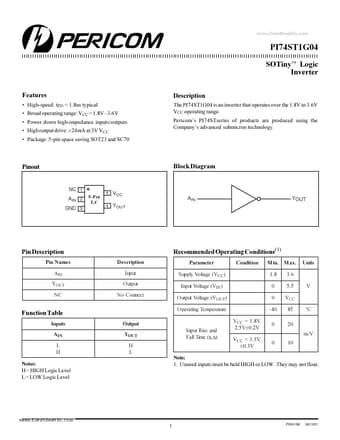

Preview of PI74ST1G04 PDF

Datasheet Details

Part number:

PI74ST1G04

Manufacturer:

Pericom Semiconductor Corporation

File Size:

305.13 KB

Description:

Sotiny logic inverter.
