PI74SSTVF16857A

14-Bit Registered Buffer

PI74SSTVF16857A Features

* Designed for low-voltage operation, 2.5V for PC1600 ~ PC2700; 2.6V for PC3200

* Supports SSTL_2 Class I output specifications

* SSTL_2 Input and Output Levels

* Designed for DDR Memory

* Flow-Through Architecture

* Packaging Options (Lead-free packag

PI74SSTVF16857A General Description

Pericom Semiconductor’s PI74SSTVF16857A series of logic circuits are produced using the Company’s advanced sub-micron CMOS technology, achieving industry leading speed. The 14-bit PI74SSTVF16857A universal bus driver is designed for 2.5V to 2.6V VDD operation and SSTL_2 I/O Levels except for the RES.

PI74SSTVF16857A Datasheet (212.35 KB)

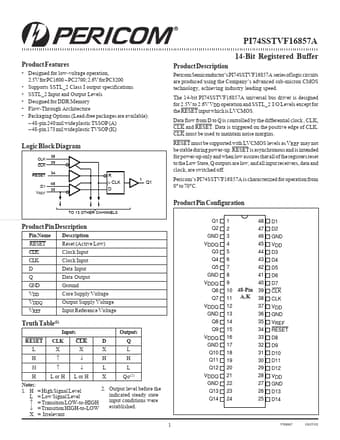

Preview of PI74SSTVF16857A PDF

Datasheet Details

Part number:

PI74SSTVF16857A

Manufacturer:

Pericom Semiconductor

File Size:

212.35 KB

Description:

14-bit registered buffer.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 123456789.
