PI74ST1G02

SOTiny Logic 2-Input NOR Gate

PI74ST1G02 Features

* • High-speed: tPD = 1.8ns typical • Broad operating range: VCC = 1.8V –3.6V • Power down high-impedance inputs/outputs • High output drive: ±24mA at 3V VCC • Package: 5-pin space saving SOT23 and SC70 Description The PI74ST1G02 is a 2-input NOR gate that operates over the 1.8V to 3.6V VCC operating

PI74ST1G02 General Description

The PI74ST1G02 is a 2-input NOR gate that operates over the 1.8V to 3.6V VCC operating range. Pericom’s PI74ST series of products are produced using the Company’s advanced submicron technology. Pinout AIN 1 BIN 2 GND 3 Block Diagram AIN BIN YOUT 5-Pin T,C 5 VCC 4 YOUT Pin Description Pin Name s.

PI74ST1G02 Datasheet (298.31 KB)

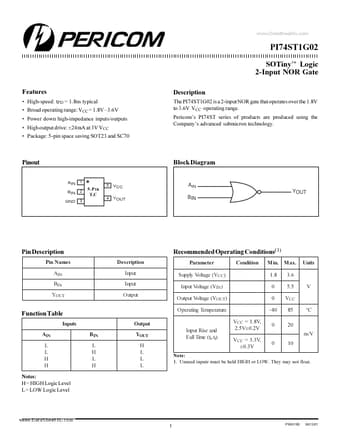

Preview of PI74ST1G02 PDF

Datasheet Details

Part number:

PI74ST1G02

Manufacturer:

Pericom Semiconductor Corporation

File Size:

298.31 KB

Description:

Sotiny logic 2-input nor gate.
