PI74SSTV16857

Registered Buffer

PI74SSTV16857 Features

* • PI74 SSTV16857 is designed for low-voltage operation, VDD = VDDQ = 2.3V to 2.7V • Supports SSTL_2 Class I and II specifications • SSTL_2 Input and Output Levels • Designed for DDR Memory • Flow-Through Architecture • Package available: – 48-pin 240 mil wide plastic TSSOP (A) – 48-pin 173 mil wide

PI74SSTV16857 General Description

Pericom Semiconductor’s PI74SSTV16857 series of logic circuits are produced using the Company’s advanced 0.35 micron CMOS technology, achieving industry leading speed. The 14-bit PI74SSTV16857 universal bus driver is designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O Levels except for the RESET .

PI74SSTV16857 Datasheet (396.50 KB)

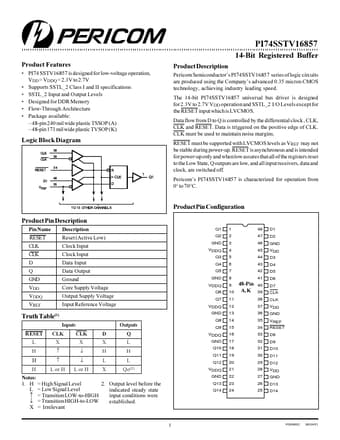

Preview of PI74SSTV16857 PDF

Datasheet Details

Part number:

PI74SSTV16857

Manufacturer:

Pericom Semiconductor

File Size:

396.50 KB

Description:

Registered buffer.
www.DataSheet4U.com 123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121.
