PI74SSTU32864

Configurable Registered Buffer

PI74SSTU32864 Features

* PI74 SSTU32864 is designed for low-voltage operation, VDD = 1.8V

* Supports Low Power Standby Operation

* All Inputs are SSTL_18 Compatible, except RST, C0, C1, which are LVCMOS.

* Output drivers are optimized to drive DDR-II DIMM loads

* Designed for DDR Me

PI74SSTU32864 General Description

Pericom Semiconductor’s PI74SSTU32864 logic circuit is produced using advanced CMOS technology. This 25-Bit 1:1 or 14-Bit 1:2 configurable registered buffer is designed for 1.7V to 1.9V VDD operation. All clock and data inputs are compatible with the JEDEC standard for SSTL_18. The control inputs ar.

PI74SSTU32864 Datasheet (621.30 KB)

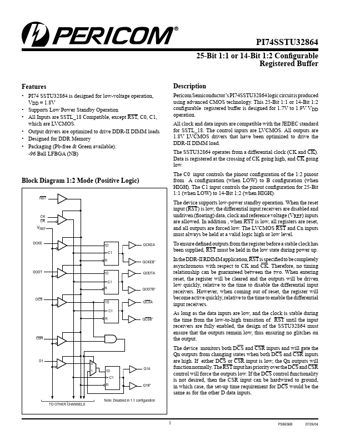

Preview of PI74SSTU32864 PDF

Datasheet Details

Part number:

PI74SSTU32864

Manufacturer:

Pericom Semiconductor

File Size:

621.30 KB

Description:

Configurable registered buffer.
