PI74ST1G08CX

SOTiny Gate ST 2-Input

PI74ST1G08CX Features

* High-speed: tPD = 1.8ns typical

* Broad operating range: VCC = 1.8V

* 3.6V

* Power down high-impedance inputs/outputs

* High output drive: ±24mA at 3V VCC

* Packaging: - 5-pin SOT23 (T) - 5-pin SC70 (C) Description The PI74ST1G08 is a 2-Input AND Gat

PI74ST1G08CX General Description

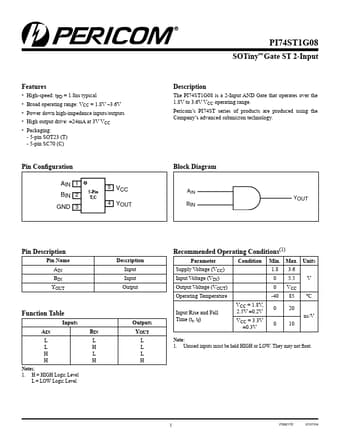

The PI74ST1G08 is a 2-Input AND Gate that operates over the 1.8V to 3.6V VCC operating range. Pericom’s PI74ST series of products are produced using the Company’s advanced submicron technology. Pin Configuration AIN 1 BIN 2 GND 3 5-Pin T,C Block Diagram 5 VCC 4 YOUT AIN BIN YOUT Pin Description.
