PL610-01 Datasheet - PhaseLink Corporation

1MHz to 130MHz XO IC

PL610-01 Features

* Wide frequency coverage, programmable, advanced oscillator design.

* Programmable “Odd/Even” Divider up to ÷63

* Direct oscillation operation with optional programmable features: o Output Drive Strength (4, 8, or 16mA) o 6-bit Odd/Even Output Divider www.DataSheet4U.com

* Input Fre

PL610-01 General Description

The PL610 is a high performance general purpose oscillator IC for outputs up to 130MHz. Designed to fit in a small 2 x 1.3mm DFN or 3 x 3mm SOT23 package, the PL610 offers the best phase noise and jitter performance and lowest power consumption of any comparable IC. In addition, there is a ‘6’ bit o.

PL610-01 Datasheet (309.00 KB)

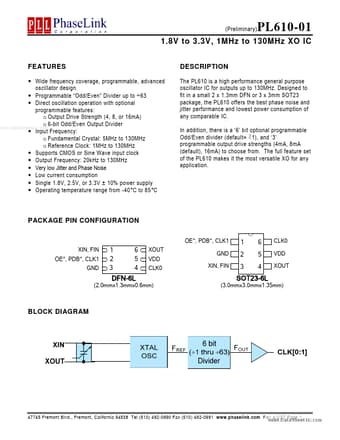

Preview of PL610-01 PDF

Datasheet Details

Part number:

PL610-01

Manufacturer:

PhaseLink Corporation

File Size:

309.00 KB

Description:

1mhz to 130mhz xo ic.
