74HC123 Datasheet, Multivibrator, Philips

74HC123 Features

  • Multivibrator
  • DC triggered from active HIGH or active LOW inputs
  • Retriggerable for very long pulses up to 100% duty factor
  • Direct reset terminates output pulse

PDF File Details

Part number:

74HC123

Manufacturer:

Philips

File Size:

124.81kb

Download:

📄 Datasheet

Description:

Dual retriggerable monostable multivibrator. The 74HC/HCT123 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in

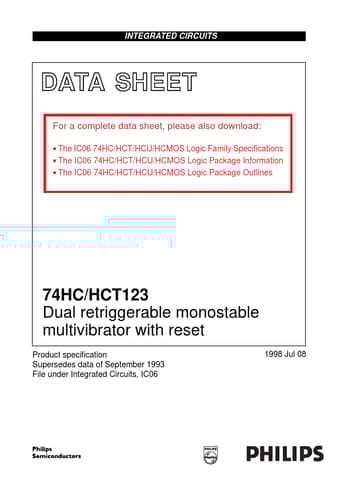

Datasheet Preview: 74HC123 📥 Download PDF (124.81kb)
