IP4220CZ6

Dual USB 2.0 Integrated ESD protection to IEC 61000-4-2 level 4

IP4220CZ6 Features

* ESD IEC 61000-4-2 level 4, ± 8kV contact discharge compliant protection

* Four ultra-low input capacitance (1 pF typ.) ESD rail-to-rail protection diodes

* Low voltage clamping due to integrated Zener diode

* Small 6 lead SO6 (SOT457) package APPLICATIONS General-pu

IP4220CZ6 General Description

The IP4220CZ6 is designed to protect I/Os being sensitive concerning capacitive load, such as USB 2.0, Ethernet, DVI etc. from destruction by Electro Static Discharges (ESD). Therefore, the IP4220CZ6 incorporates four pairs of ultra-low capacity rail-to-rail diodes plus an additional Zener diode to .

IP4220CZ6 Datasheet (119.60 KB)

Preview of IP4220CZ6 PDF

Datasheet Details

Part number:

IP4220CZ6

Manufacturer:

Philips

File Size:

119.60 KB

Description:

Dual usb 2.0 integrated esd protection to iec 61000-4-2 level 4.

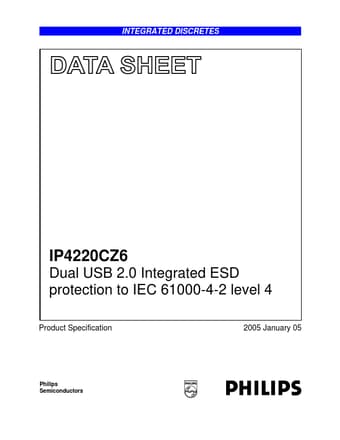

www.DataSheet4U.com INTEGRATED DISCRETES IP4220CZ6 Dual USB 2.0 Integrated ESD protection to IEC 61000-4-2 level 4 Product Specification 2005 Janua.
