PAW3512DK - USB OPTICAL MOUSE SINGLE CHIP

Product Overview

PixArt

Datasheet Details

Part number	PAW3512DK
Manufacturer	PixArt
File Size	107.33 KB
Description	USB OPTICAL MOUSE SINGLE CHIP
Datasheet	PAW3512DK Datasheet

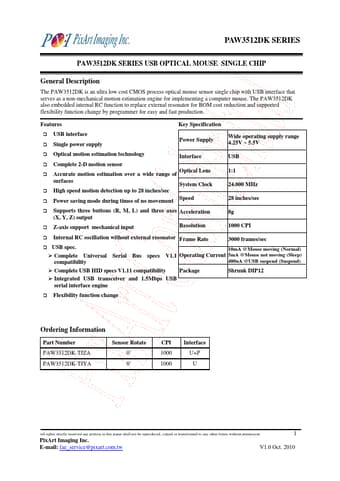

Additional preview pages of the PAW3512DK datasheet.

Product details

Description

The PAW3512DK is an ultra low cost CMOS process optical mouse sensor single chip with USB interface that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification USB interface Single power supply Power Supply Wide operating supply range 4.25V ~ 5.5V Optical motion estimation technology Interface Complete 2-D motion sensor Accurate motion estimation over a wide range of Optical Lens surfaces System Clock High speed motion detection up to 28 inches/sec Power saving mode during times of no movement Speed USB 1:1 24.000 MHz 28 inches/sec Supports three buttons (R, M, L) and three axes Acceleration (X, Y, Z) out.
