PAW3515DB-VJYA - USB OPTICAL MOUSE SINGLE CHIP

Product Overview

PixArt

Datasheet Details

Part number	PAW3515DB-VJYA
Manufacturer	PixArt
File Size	356.64 KB
Description	USB OPTICAL MOUSE SINGLE CHIP
Datasheet	PAW3515DB-VJYA Datasheet
Note	This datasheet PDF includes multiple part numbers: PAW3515DB-VJYA, PAW3515DB. Please refer to the document for exact specifications by model.

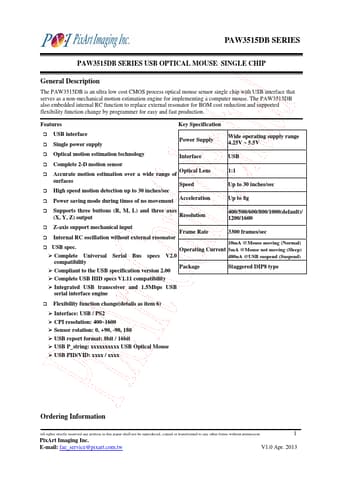

Additional preview pages of the PAW3515DB-VJYA datasheet.

Product details

Description

The PAW3515DB is an ultra low cost CMOS process optical mouse sensor single chip with USB interface that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification USB interface Single power supply Power Supply Wide operating supply range 4.25V ~ 5.5V Optical motion estimation technology Interface Complete 2-D motion sensor Accurate motion estimation over a wide range of Optical Lens surfaces Speed High speed motion detection up to 30 inches/sec Power saving mode during times of no movement Acceleration USB 1:1 Up to 30 inches/sec Up to 8g Supports three buttons (R, M, L) and three axes (X, Y, Z) output Res.
