PAW3512DK-TJYA - USB OPTICAL MOUSE SINGLE CHIP

Product Overview

PixArt

Datasheet Details

Part number	PAW3512DK-TJYA
Manufacturer	PixArt
File Size	107.33 KB
Description	USB OPTICAL MOUSE SINGLE CHIP
Datasheet	PAW3512DK-TJYA Datasheet
Note	This datasheet PDF includes multiple part numbers: PAW3512DK-TJYA, PAW3512DK. Please refer to the document for exact specifications by model.

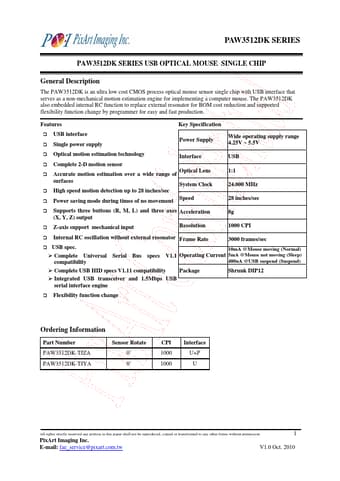

Additional preview pages of the PAW3512DK-TJYA datasheet.

Product details

Description

The PAW3512DK is an ultra low cost CMOS process optical mouse sensor single chip with USB interface that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification USB interface Single power supply Power Supply Wide operating supply range 4.25V ~ 5.5V Optical motion estimation technology Interface Complete 2-D motion sensor Accurate motion estimation over a wide range of Optical Lens surfaces System Clock High speed motion detection up to 28 inches/sec Power saving mode during times of no movement Speed USB 1:1 24.000 MHz 28 inches/sec Supports three buttons (R, M, L) and three axes Acceleration (X, Y, Z) out.
