PAW3501UI - USB OPTICAL MOUSE SENSOR SINGLE CHIP

Product Overview

PixArt

Datasheet Details

Part number	PAW3501UI
Manufacturer	PixArt
File Size	216.75 KB
Description	USB OPTICAL MOUSE SENSOR SINGLE CHIP
Datasheet	PAW3501UI Datasheet

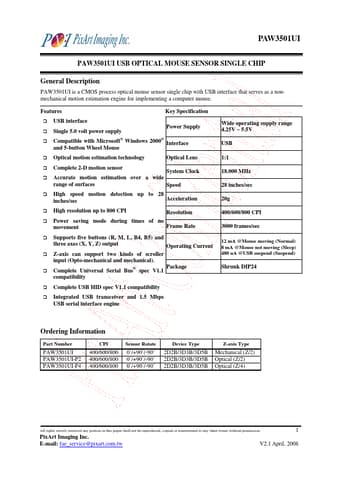

Additional preview pages of the PAW3501UI datasheet.

Product details

Description

PAW3501UI is a CMOS process optical mouse sensor single chip with USB interface that serves as a nonmechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification USB interface Single 5.0 volt power supply Power Supply Compatible with Microsoft® Windows 2000® Interface and 5-button Wheel Mouse Optical motion estimation technology Optical Lens Complete 2-D motion sensor System Clock Accurate motion estimation over a wide range of surfaces Speed High speed motion detection up to 28 inches/sec Acceleration High resolution up to 800 CPI Resolution Power saving mode during times of no movement Frame Rate.
