PAW3509DH-TXWA - USB OPTICAL MOUSE SINGLE CHIP

Product Overview

PixArt

Datasheet Details

Part number	PAW3509DH-TXWA
Manufacturer	PixArt
File Size	95.85 KB
Description	USB OPTICAL MOUSE SINGLE CHIP
Datasheet	PAW3509DH-TXWA Datasheet

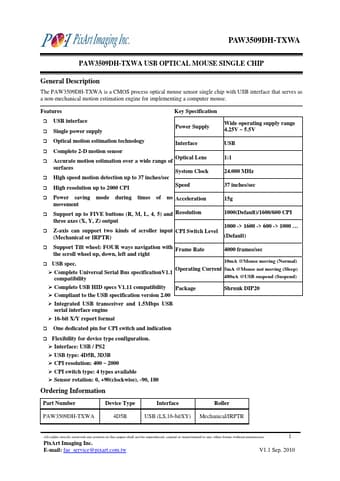

Additional preview pages of the PAW3509DH-TXWA datasheet.

Product details

Description

The PAW3509DH-TXWA is a CMOS process optical mouse sensor single chip with USB interface that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification USB interface Single power supply Power Supply Wide operating supply range 4.25V ~ 5.5V Optical motion estimation technology Interface Complete 2-D motion sensor Optical Lens Accurate motion estimation over a wide range of surfaces System Clock High speed motion detection up to 37 inches/sec High resolution up to 2000 CPI Speed USB 1:1 24.000 MHz 37 inches/sec Power saving mode during times of no Acceleration movement 15g Support up to FIVE but.
