PAW3504DLY - PURE USB OPTICAL MOUSE SINGLE CHIP

Product Overview

PixArt

Datasheet Details

Part number	PAW3504DLY
Manufacturer	PixArt
File Size	596.34 KB
Description	PURE USB OPTICAL MOUSE SINGLE CHIP
Datasheet	PAW3504DLY Datasheet
Note	This datasheet PDF includes multiple part numbers: PAW3504DLY, PAW3504. Please refer to the document for exact specifications by model.

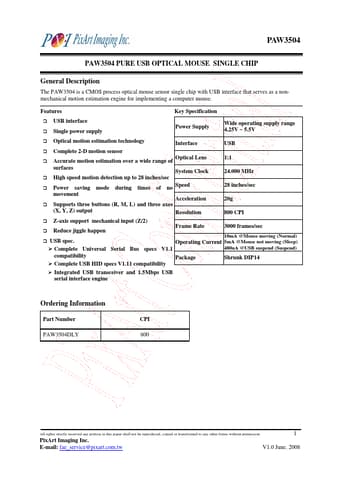

Additional preview pages of the PAW3504DLY datasheet.

Product details

Description

The PAW3504 is a CMOS process optical mouse sensor single chip with USB interface that serves as a nonmechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification USB interface Single power supply Power Supply Wide operating supply range 4.25V ~ 5.5V Optical motion estimation technology Interface USB Complete 2-D motion sensor Optical Lens Accurate motion estimation over a wide range of surfaces System Clock High speed motion detection up to 28 inches/sec Power saving mode during times of no Speed movement Acceleration Supports three buttons (R, M, L) and three axes (X, Y, Z) output Resolution 1:1 24.000.
