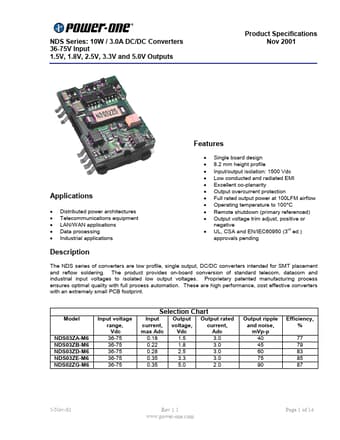

NDS03ZA-M6, NDS - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs

Power-One

Datasheet Details

Part number: NDS03ZA-M6, NDS
Manufacturer: Power-One
File Size: 312.54 KB
Datasheet: NDS-02ZG.pdf
Description: NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs
Note: This datasheet PDF includes multiple part numbers: NDS03ZA-M6, NDS.
Please refer to the document for exact specifications by model.

The NDS series of converters are low profile, single output, DC/DC converters intended for SMT placement and reflow soldering..

Single board design 8.2 mm height profile Input/output isolation: 1500 Vdc Low conducted and radiated EMI Excellent co-planarity Output overcurrent protection Full rated output power at 100LFM airflow Operating temperature to 100°C Remote shutdown (primary referenced) Output voltage trim adjust, positive or negative rd UL, CSA and EN/IEC60950 (3 ed. ) approvals pending.
